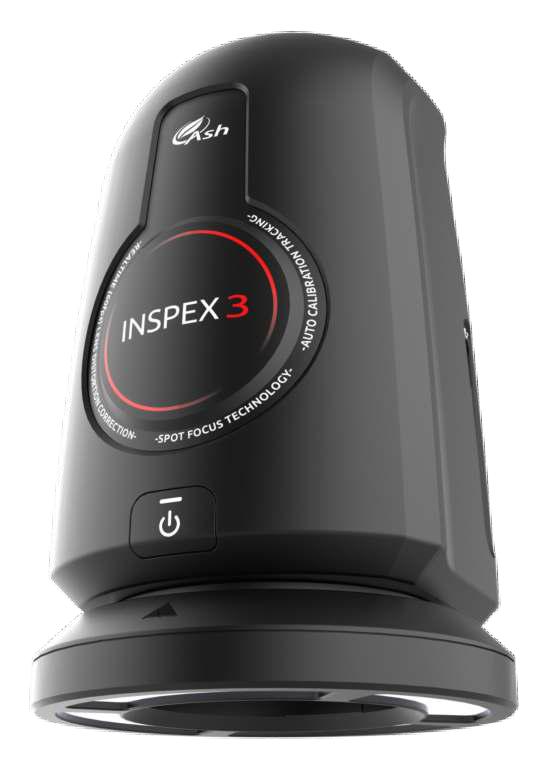

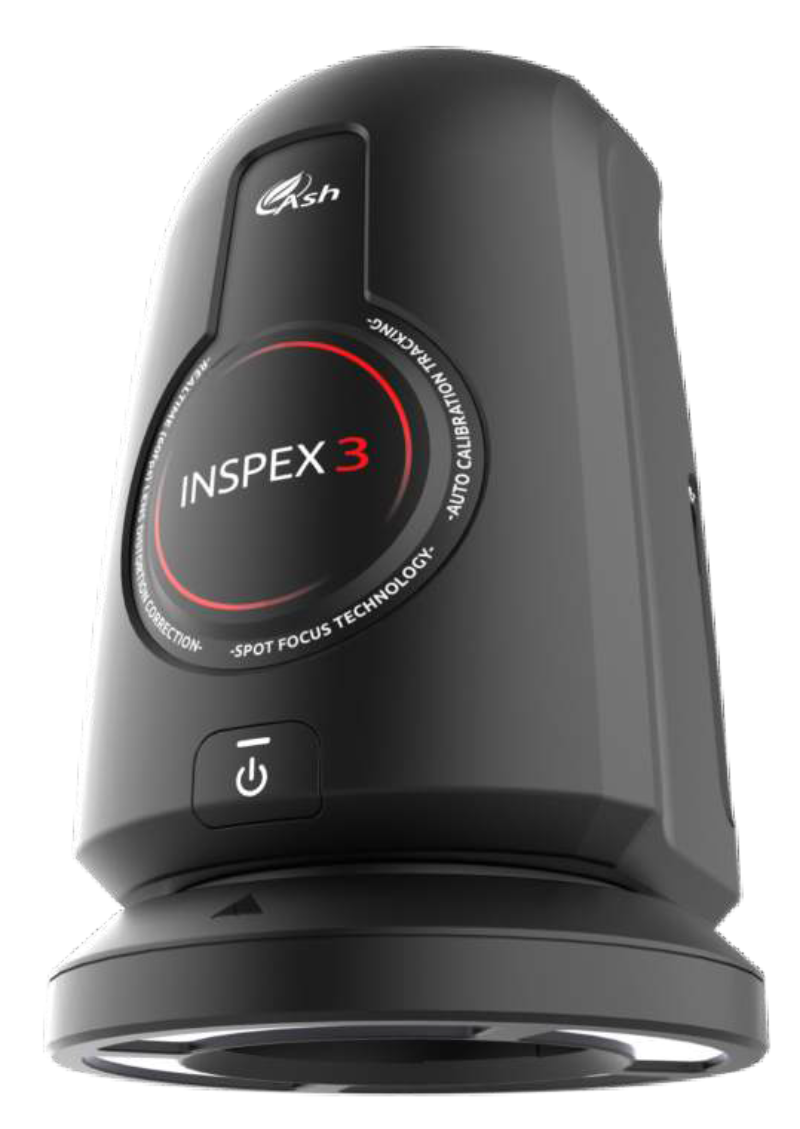

Other Inspex 3 - Digital Microscopes - Digital Imaging & Analysis

The Inspex 3 offers an ergonomic, fully integrated full HD (1080p) digital microscope and measurement system that operates without a PC. The GUI provides intuitive and efficient operation and control of the Inspex 3’s full application suite with only a mouse (included) and a monitor (not included).

The intuitive software interface simplifies operation and controls increasing productivity and efficiency. The calibration technology tracks and adjusts to zoom changes so there is no need for time-consuming zoom change re-calibrations.

The Inspex 3 platform has a powerful image processing and control engine that delivers superb full HD live video image quality at 60 frames per second enabling it to be used as a solution in a broad range of quality control, testing, rework, assembly, inspection and documentation tasks across many industries.

Superb Image Quality

Experience unrivalled Full HD video imaging. The lnspex 3 offers an enhanced, vibrant, crystal clear image for even the most demanding inspection applications.

Manual Rocker Focus

Save time by quickly adjusting the focus using the rocker icon to inspect the area of interest on a sample part when in manual focus mode.

Superfast Auto-Focus

Place any part under the camera and it instantly adjusts the focus position allowing you to quickly and seamlessly inspect your part without having to adjust manual focus or change the height of the part.

SpotFocus™

Quickly focus on the area of interest by simply using the mouse pointer. lmprove accuracy and reduce human error with the capabilities of SpotFocus.

RTLDC™

Real-Time Lens Distortion Correction.
Lens distortion is inherent in all microscopes. lmage distortion at the outer edges of large samples is automatically corrected by the lnspex 3.

Advanced Camera Settings

The new Advanced Camera Settings gives the user more power to enhance the image for a wide range of inspection and measurement capabilities. Tailor sharp- ness, contrast, saturation and camera shutter speed to suit your particular application.

No Video Latency

The video from the lnspex 3 has zero delay. lt s 3-times faster than our previous systems. View parts in real time with no video lag, allowing you to comfortably inspect, rework, modify and assemble any part. There is no delay between movement under the camera and what you see on the screen.

Applications

2D Measurement, Annotation, & Graticles
Set User Privileges
Interchangeable Lighting
Image Stacking
On Screen Preset Buttons
Save to Network
Image Stamping
Removable USB Image Capture
Save & Recall Images Internally
Transfer Images To PC Via USB
Intuitive Graphical User Interface
No PC Required

Camera Resolution	HD 1080p; 1920x1080; 60fps
Zoom	5D Lens (included); 2.1x—131.6x (24” screen)
Basic Functions	Auto/Manual focus, brightness adjustment, magnification adjustment, snapshot, overview, high contrast mode, height adjustable
Features	Calibration and tracking throughout zoom range, on-screen pre-set mode, 2-D line measurement, on-screen overlays, auto-focus, networkable, image stacking, image capture and user access controls
Input / Output Modes	HDMI Output USB 2.0 port x 4 Mini USB General purpose IO port x 3 DC 24v power jack
Storage	16GB internal storage; removable USB image storage, USB on the Go
Monitor Format	HD ready or Full HD 16:9 (recommended) - monitor not included
Power Supply	100/240v; 50/60Hz; 24w power consumption
Dimensions / Weight	216mm X 165mm X 170mm (LWH) / 1.5kg
Temperature	Storage: -10C to +60C Operating: +5C to +40C
