The iNEXIV VMA series CNC video measuring system offers the ultimate in usability for automatic measuring of various 3D components with a large FOV, long working distance and wide XYZ stroke.
Suitable for large samples (450 x 400 x 200 mm or larger) and simultaneous measurement of multiple parts. High cost-performance with the same strong cast-iron body and direct bearing as the high end models.
Wide Field of View and Sharp, Clear Images
A wide FOV of up to 13 mm x 10 mm (at 0.35x) allows easy search and alignment of measuring targets. The 10x zoom with five specific steps provides accurate measurement as well as high resolution images. An excellent Apochromat objective lens with high NA (0.11) and low distortion has been specially designed for the iNEXIV series, providing crisp, clear images.
Large XY Stroke and Long Z Stroke
The XY stroke of the VMA-6555 is 650 x 550 mm and is suitable for measurement of large samples and simultaneous measurement of multiple parts. The extended 200 mm Z-axis stroke is ideal for tall workpieces.
Auto Focus with High Repeatability
Highly repeatable vision AF offers high-speed, high-precision focusing and height/depth measurement.
Even the bottom of a small diameter hole can be brought into correct focus.
Laser AF (option)
Laser AF (option)
The Laser AF with a long 63 mm working distance is optionally available, enabling height measurement of flat surfaces with high repeatability, in keeping a wide FOV at a low magnification.
Options for Expanding Measurement Possibilities
Touch probe for measurement of imperceptible parts from top and bevel angle
The VMA-6555 is touch-probe ready and accommodates optional Renishaw® TP20 or TP200 touch probes to measure 3D shapes parts where vision AF cannot be used. Touch probe and vision measuring are seamlessly switched, since the touch probe works coaxially as the optical axis using dedicated software.
Extended 1.5x high-magnification
Each model can be modified before shipment to extend magnification to 1.5x, powerful enough for precise measurement of minute electronic parts.
*Video measuring images are slightly darker than that of standard magnification.
|Stroke (X x Y x Z)||
650 x 550 x 200 mm
|Measurement Range with TP (Touch Probe)||
600 x 550 x 166 mm (TP20)
600 x 550 x 170 mm (TP200)
650 x 550 x 200 mm (with Vision AF)
|Measurement Range with TP & MCR20||
*1 525 x 550 x 166 mm (TP20)
525 x 550 x 170 mm (TP200)
575 x 550 x 200 mm (with Vision AF)
|Maximum Workpiece Weight||
|Maximum Workpiece Weight (accuracy guaranteed)||
|Maximum Permissible Error *2 (L = Length in mm)||
EUX,MPE EUY,MPE: 2+6L/1000 µm
EUXY,MPE: 3+6L/1000 µm
EUZ,MPE: 3+L/100 µm
1/3-in. progressive scan b/w camera (standard), 1/3-in. progressive scan color camera (optional)
73.5 mm (63 mm with Laser AF)
Optical: 0.35 to 3.5x (0.52x to 5.2x high magnification is available as an option)
On screen: 12.6 to 126x with 24-inch WUXGA (1920 x 1200 pixels) monitor
|FOV Size On Stage||
13.3 x 10 mm to 1.33 x 1 mm (8.9 x 6.7 mm to 0.89 x 0.67 mm with high-magnification option)
Vision AF and optional Laser AF
Contour illumination: White LED diascopic illumination
Surface illumination: White LED episcopic illumination

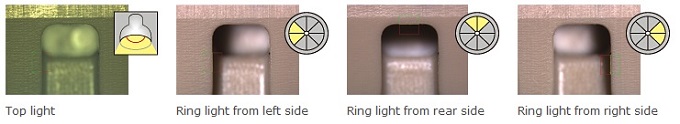

Oblique illumination: 8-segment white LED ring illumination
640 x 480 (pixels)
|Touch Probe (optional) *1||
100V-240 V, 50/60 Hz
5A(100V) - 2.5A(240V)
|Dimensions & Weight||
Main body with table (W x D x H): 1200 x 1640 x 1553 mm, 665 kg
Controller: 145 x 400 x 390 mm, 14 kg
Temperature: 10°C to 35°C
Humidity: 70% or less
|Accuracy Guaranteed Temperature||
Intel® Core™ 2 Duo CPU or faster
4GB or more
Windows® 7 32bit
USB2.0 / IEEE1394
