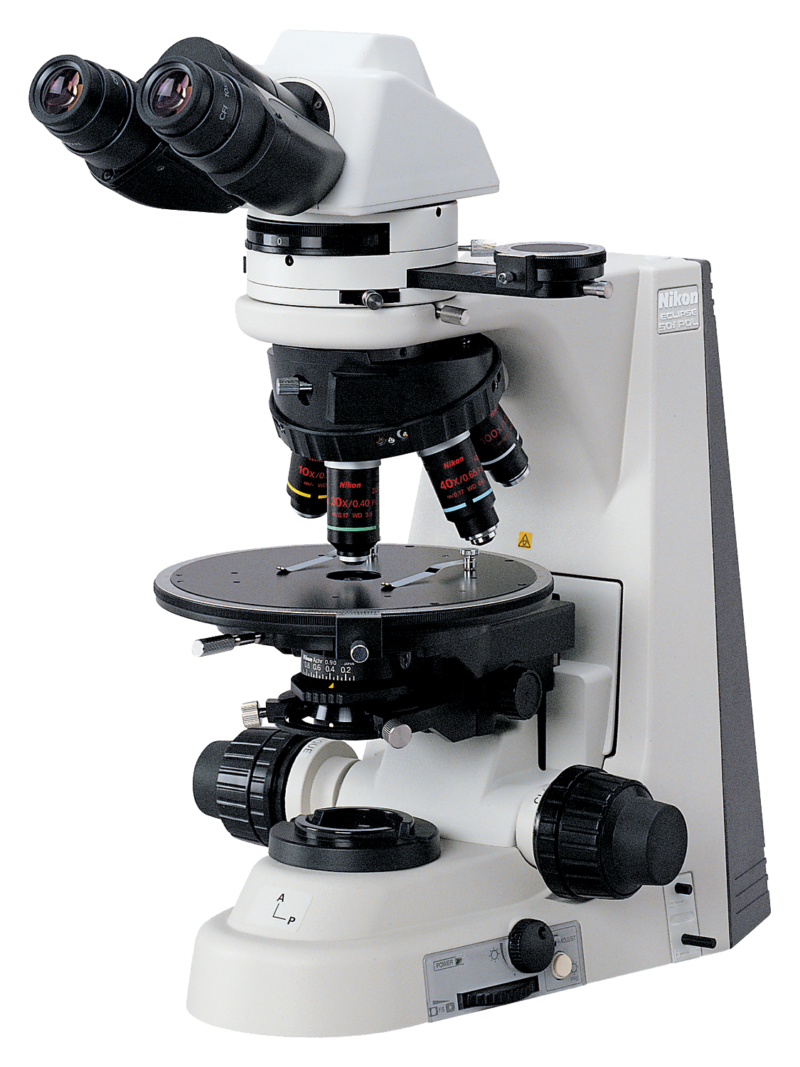

Eclipse 50i POL Polarizing Microscope

A compact polarizing microscope that balances optical performance and ease of use

With its small footprint, the Eclipse 50i POL is a basic polarizing microscope that offers powerful microscope optics and comfortable operation in an affordable package. Available in diascopic and episcopic illumination types, the 50i POL features a newly designed illumination system that provides greater brightness than any microscope in its class.

CFI60 Optical System

Nikon’s proprietary CFI60 optics provide high NA and a longer working distance. CFI60 optics deliver bright, high-resolution images. Up to five objective lenses can be mounted.

Main Body Optical System

CFI60 infinity objectives

Main Body Illumination

6V-30W halogen lamp; 6V-30W built-in transformer; built-in ND8 filter

Main Body Focusing

Coaxial course/fine focus knob; Focus stroke: 30mm; Coarse: 13.8mm per rotation; fine: 0.1mm; Minimum reading: in 1µm increments

Eyepiece

10x (F.O.V. 22mm), CM type with crosshair and micrometer scale

Eyepiece Tube

P-TT Trinocular Tube for polarizing microscopy; P-TB Binocular Tube for polarizing microscopy

Intermediate Tube

Built-in focusable Bertrand lens removable from optical path; switchable Conoscopic/Orthoscopic observations; built-in Analyzer; Plate/compensator slot

Analyzer

360° rotary dial; Minimum reading at angle 0.1°

Nosepiece

Reversed centering quintuple nosepiece (detachable); DIN slot

Stage

Ball-bearing rotary stage; Rotatable 360° horizontally; can be fixed at a specific position; Graduated 360° (in 1° increments); Attachable mechanical stage: 35x25mm travel; vernier 0.1mm

Condenser

Dedicated strain-free swing-out type; P Achromat N.A. 0.9

Polarizer

No scale

Objectives

CFI P Achromat 4x, 10x, 20x, 40x, 100x; CFI LU Plan Fluor Epi P 5x, 10, 20x, 50x, 100x

Episcopic Illuminator

LV-UEPI Universal Epi Illuminator*

Compensators

Standard 1/4 Lambda and tint plate, quartz wedge or Sernamont compensator can be inserted into intermediate tube slot

Power Consumption

0.9A/48W
