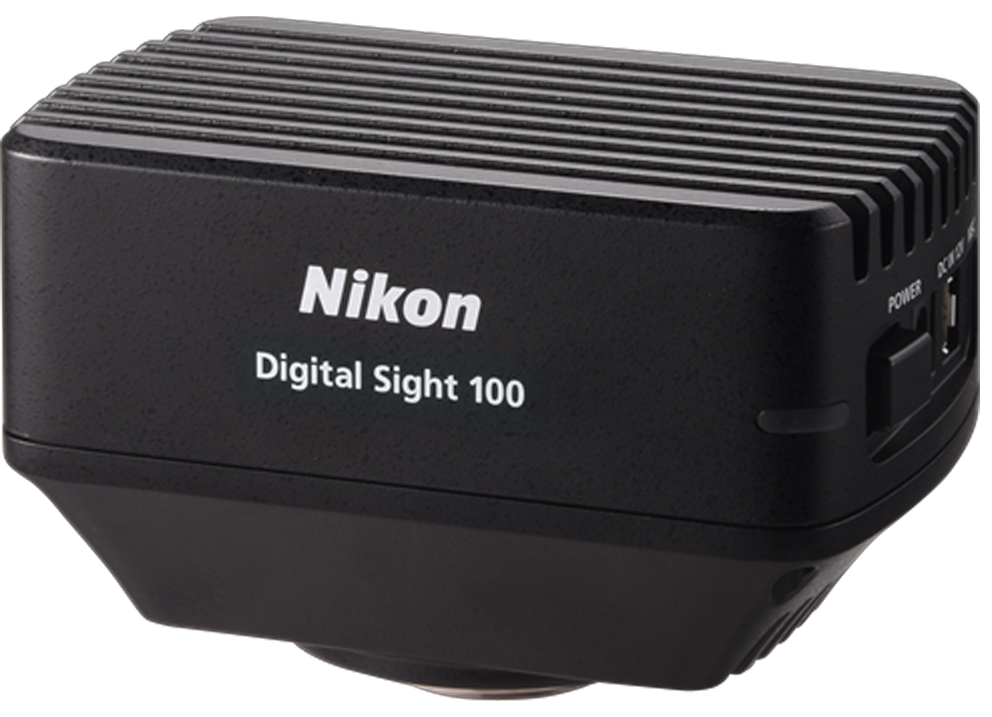

Nikon Digital Sight 100 - Digital Cameras - Digital Imaging & Analysis

Delivering 6.5 megapixel resolution to ensure clear capture of fine structural details and rich color information.

This is a color digital camera for microscopes that enables capturing a large field of view (field number 25) with exceptional clarity in a single shot. Furthermore, the high resolution and superior color reproduction in 4K reduce the risk of errors and oversights. Remote acquiring via Wi-Fi and seamless data sharing are also supported to meet the diverse needs from pathological observation to education and research.

Large field capturing

Large field photography with a field of view of 25 is available, which enables the observation and capture of a large area in a single shot. Live sharing during monitor observation and capturing images provide a field of view equivalent to binocular vision to enhance the work efficiency.

High-level color reproduction

In addition to the conventional sRGB, the adoption of AdobeRGB with its wider color gamut has extended the color reproduction capabilities.The expanded color gamut effectively enhances color reproduction.

High-resolution fluorescence capturing

The adoption of a large 1-inch CMOS sensor allows for highly sensitive capturing of images, which enhances convenience during fluorescence observation.

Remote capturing via Wi-Fi

A PC with free NIS-Elements LE software installed can be connected via Wi-Fi to capture microscope images.

HDMI output supported

An HDMI terminal is provided to allow users to connect directly to a display and view 4K image without a personal computer.

Image sensor	1 inch Color CMOS image sensor Size: 12.9 x 8.76 mm
Recordable pixels	4864 × 3648 pixels
Lens mount	C-mount
Live display mode (Maximum fps)	All Pixels 4:3 (4864 x 3648 pixels): 17 fps, All Pixels 16:9 (5376 x 3024 pixels): 19 fps, 2 and 2 Pixels Average 16:9 (2688 x 1512 pixels): 60 fps *When using USB3.2 GEN2
Exposure time	100µ sec to 10 sec
Photometry mode	Average photometry: Average intensity within the photometry area Peak photometry: Maximum intensity within the photometry area
Exposure control	One-time automatic exposure: Exposure time is adjusted automatically for one-time within the optimum range for the camera Continuous automatic exposure: Automatic exposure adjustment is performed continuously to keep the exposure within the camera Manual exposure: Exposure time and gain settings are made manually
Exposure correction	Average metering: ±1EV Step:1/6EV (some restrictions according to tone) Peak hold metering: -1 EV ~ ±0 EV
Interface	USB Port 1: USB 3.2 GEN 2 (USB 2.0 not supported), USB Port 2: USB 3.2 GEN 1 HDMI 1.4b, For External Sync I/O (MSC communication) x 1
Power supply	AC 100-240 V 50 Hz/60 Hz
Power consumption	7W
Dimensions	120（W）×74（D）×75（H）mm
Weight	600g (approx.)
Operating environment	0-40°C, 60% RH max. (without condensation)
