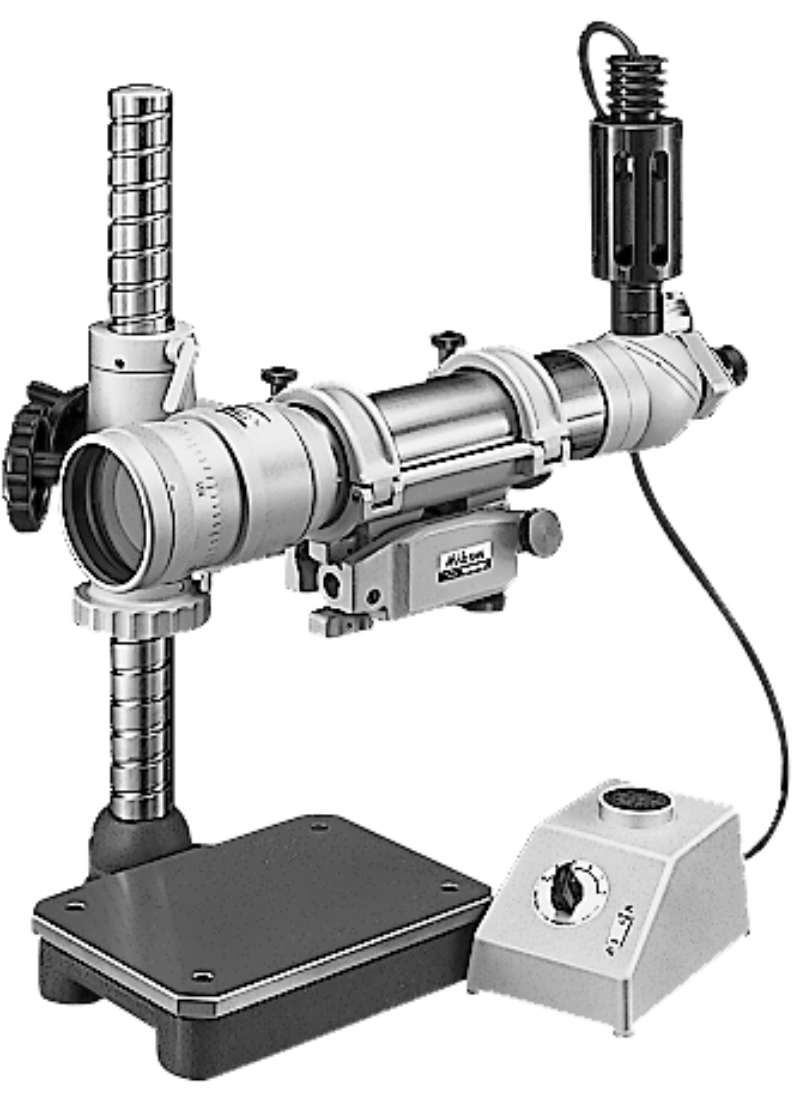

Nikon 6D Autocollimator
Request a Quote or Demo
Popular darkfield model projects a clear bright-line cross for easy alignment and measurement.Nikon’s 6B autocollimator checks alignment and measures very small angular deviations to measure flatness or height by simple geometry. The 6D darkfield model projects a bright crossline and is the most popular model because the bright-line cross is the easiest to see. Provides measuring accuracy down to 0.5 arc seconds.
Half Second Measuring Accuracy
Readings of angular displacement of 0.5 second of arc using an easy-to-read large-diameter micrometer drum.
70mm Aperture Lenses
The 6D employs a 70mm aperture lens to product clear, reflected images. It also features extremely accurate double line reticles for improved detection.
Viewfield Diagram
The 6D Autocollimator makes high-precision measurements simultaneously on two axes with the darkfield technique. It projects a bright crossline and Nikon’s most popular model because the bright-line cross is the easiest to see.
| Field of View | Dark viewfield with bright cross-line |
| Telescope Magnification | 38x |
| Objective | F=700mm effective aperture 70mm with paralax (flatness) correction adjustment. |
| Readout | Read minutes from the markings on the X and Y main scales. 0-30 minutes of arc X and Y in 1 minute increments. A Micrometer drum marked 0-60 Seconds of arc with minimum reading 0.5 seconds. |
| Measuring Accuracy | Autocollimator Stand Type 3 - Heavy duty with unique precision 2 axis targeting adjustment knobs. Spiral column height adjustment as well as 360° tilt, swivel and rotation. |
| Light Source | 6V/20W transformer available in 120V and 240V AC models |
| System Components | Autocollimator type 6D or 6B, Type C adjustable stand and 6V 20W transformer |
| Weight | Autocollimator and stand - approximately 30kg (66 lb) |
-
