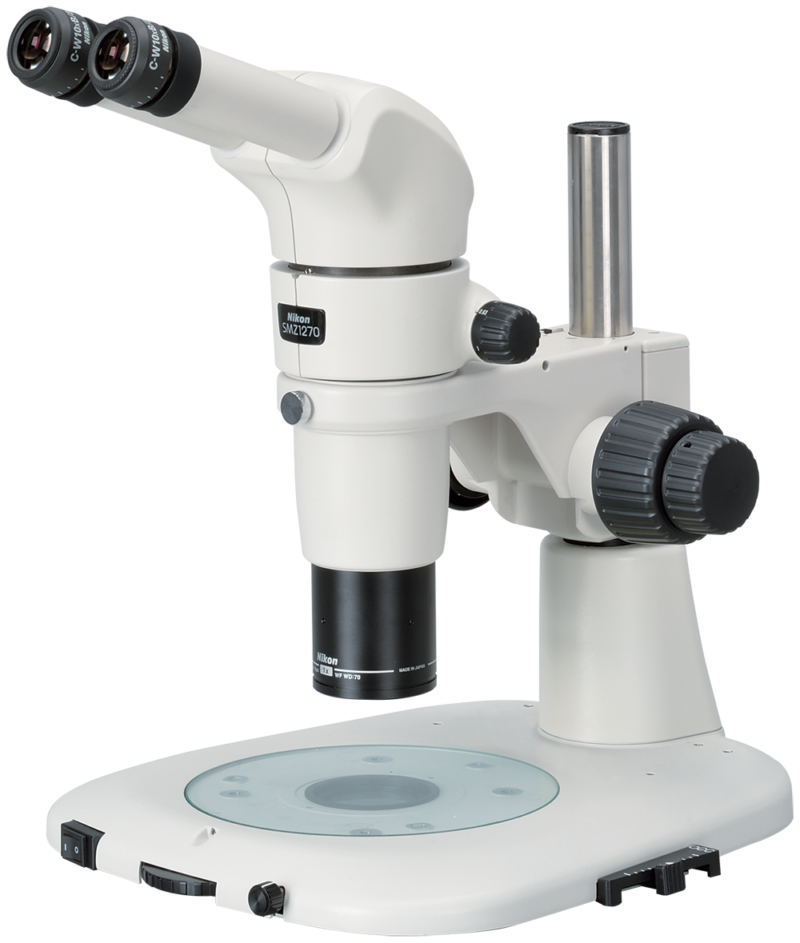

All-new stereomicroscope delivering incredible image sharpness throughout a wide magnification range
To meet and exceed the needs to observe minute structures while covering a wide field of view in the biological fields where biological body screening, injection and observation are conducted every day, the SMZ1270 was developed to feature expanded zoom ratio, high operability, and excellent optical performance.
- Metallurgy, metal manufacturing
- Cast iron nodularity and flake analysis, grain sizing
- Cracks and failure analysis
- Surface examination
- Composites, fabrics/textiles, asbestos
- Antennae, telescope optics
- Microelectronics, MEMS
- Telecom and electronics
- Mobile phones, shavers and watches
- Manual examination
Best-In-Class Zoom Ratio
With a best-in-class zoom ratio of 12.7x (0.63x-8x), the SMZ1270 covers an even greater magnification range than previous models. At the lowest magnification, the actual field of view will go up to 35mm*, allowing easy observation of an entire 35mm petri dish.
*when 1x objective and 10x eyepieces are used (excluding Coaxial EPI illumination).
New Objectives Optimized for Widefield Observation at Low Magnification
In combination with the newly developed WF series objectives, the SMZ1270 offers a wide and uniformly bright viewfield even at low magnifications. In addition, a 0.75x objective is now available, expanding the lineup of low magnification objectives.
Versatile Double Nosepiece
The double nosepiece allows for seamless observation in a wide range of magnifications. In addition, changing objectives has never been easier.
By changing the nosepiece from stereo-position (stereo view) to mono-position (on-axis view), you can easily acquire images suited for measuring and processing.
There are several eyepiece tubes to fit various configurations, from a simple setup to a system with some intermediate modules or digital cameras. With an ergonomic eyepiece tube, the observation angle can be adjusted from 0-30 degrees, allowing for comfortable observation postures even if combined with intermediate modules like illuminators or teaching heads. Furthermore, the Plain Stands and Diascopic LED Stands adapted a slim design for easier operation and exchange of specimens and samples.
Expandable with a Wide Range of Accessories
To support a variety of observation methods and applications used for research and inspection, an assortment of accessories, such as illumination units, stands, and eyepiece tubes, are available. By incorporating a “Fly Eye Lens” with the Epi-Fluorescence illuminator, uniform brightness over the entire field of view is realized, which helps in observing specimen that needs a wide magnification range. Nikon also offers several digital cameras ideally suited different stereo microscope applications.
Diascopic illumination stands have been renewed. The slim LED base design
provides easy access to specimen and easy operation. As with the SMZ25 and SMZ18, the diascopic illumination base features Nikon’s very own oblique illumination, the OCC illuminator. The built-in feature offers high contrast observation for transparent samples such as oocytes used in the IVF application IVF application.
Parallel-optics type (zooming type)
0.63 – 8x (0.63/1/2/3/4/6/8x stops)
3.15 – 480x (depending on eyepiece and objectives)
(with coaxial episcopic illuminator: 15 – 540x)
Eyepiece inclination: 20° (P-B Binocular Tube) / 15° (P-TL100 Trinocular Tube) / 0°-30° (P-TERG100 Trinocular Tilting Tube, P-TERG50 Trinocular Tilting Tube)
C-W10xB (F.N. 22), C-W15x (F.N. 16), C-W20x (F.N. 12.5), C-W30x (F.N. 7)
Plan Apo 0.5x/WF, Plan Apo 0.75x/WF, Plan Apo 1x/WF, ED Plan 1.5x/WF, ED Plan 2x/WF
70mm（with Plan Apo 1x/WF）
9.8 kg (with P-B Binocular Tube + P-DSL32 LED Diascopic Illumination Stand)
